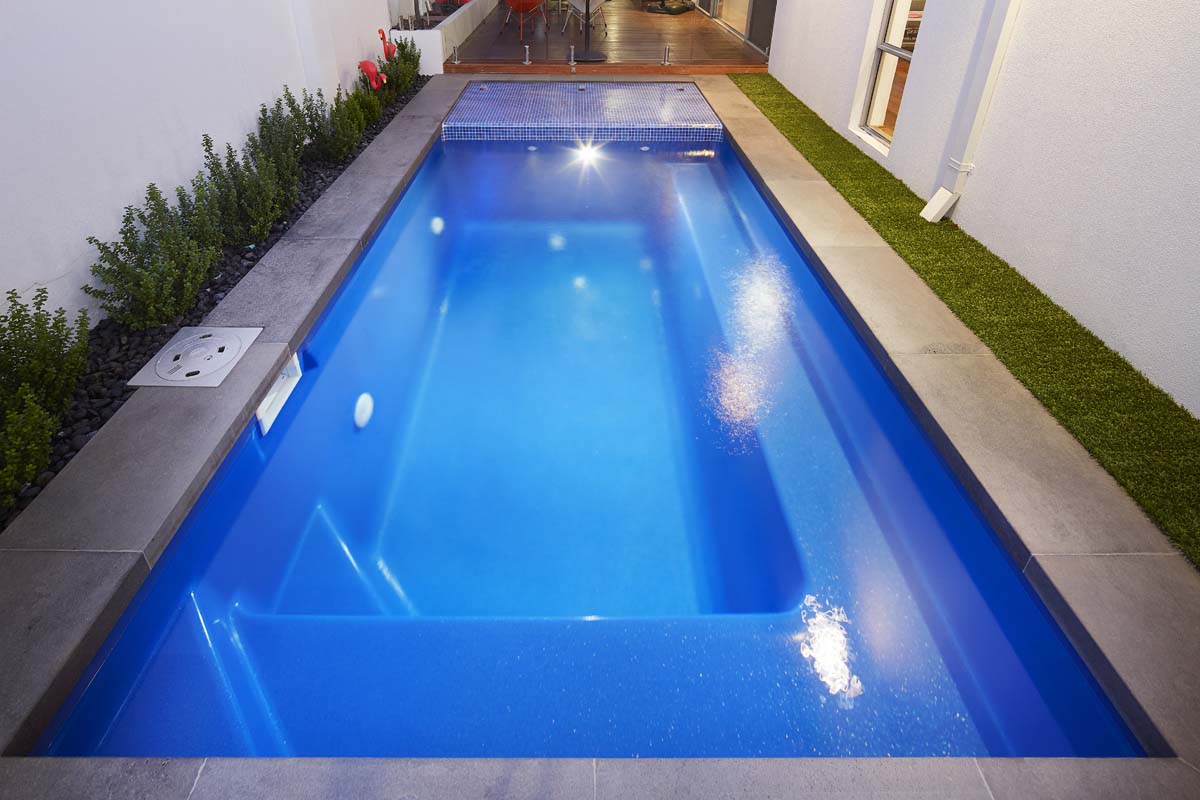

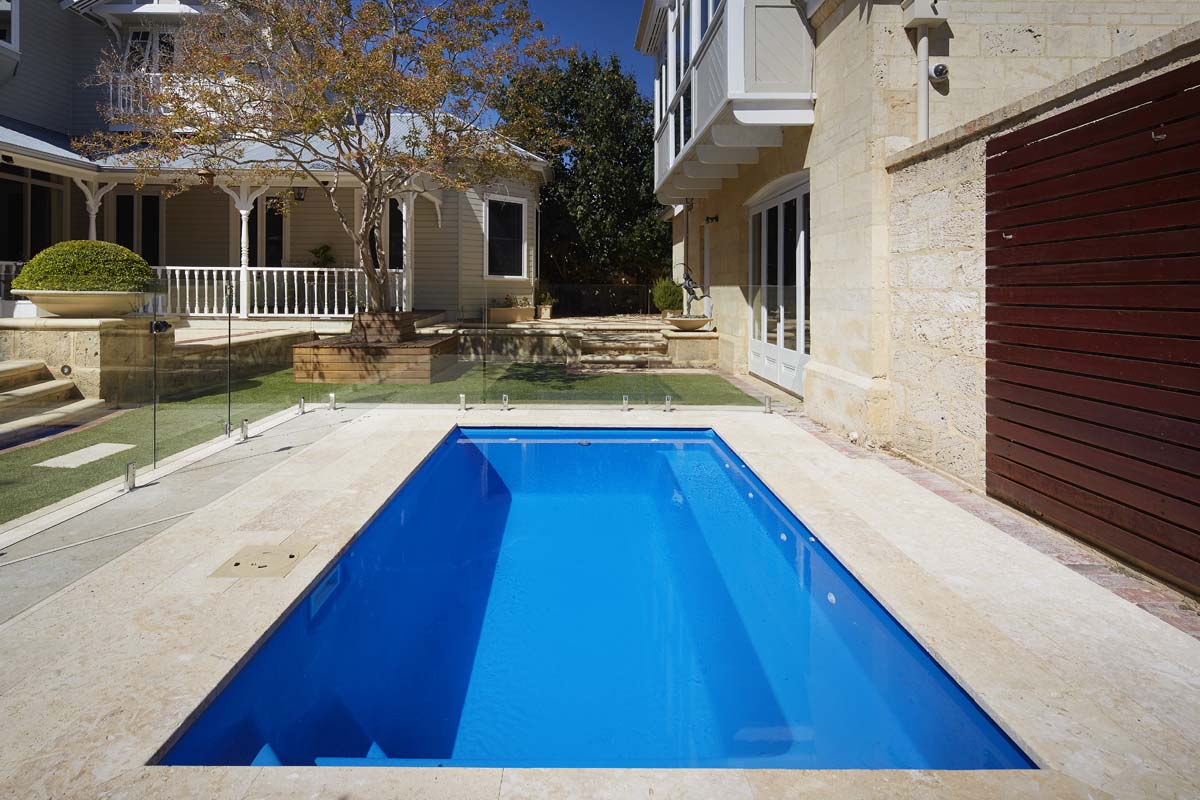

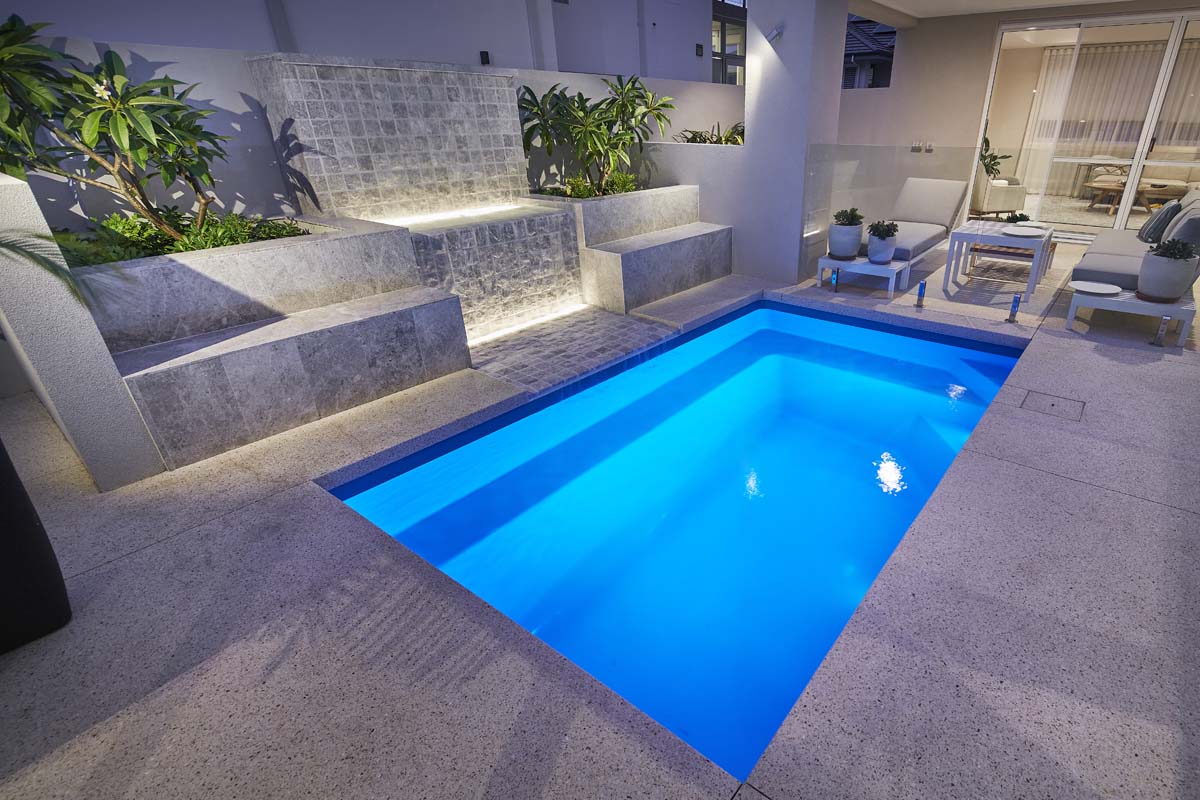

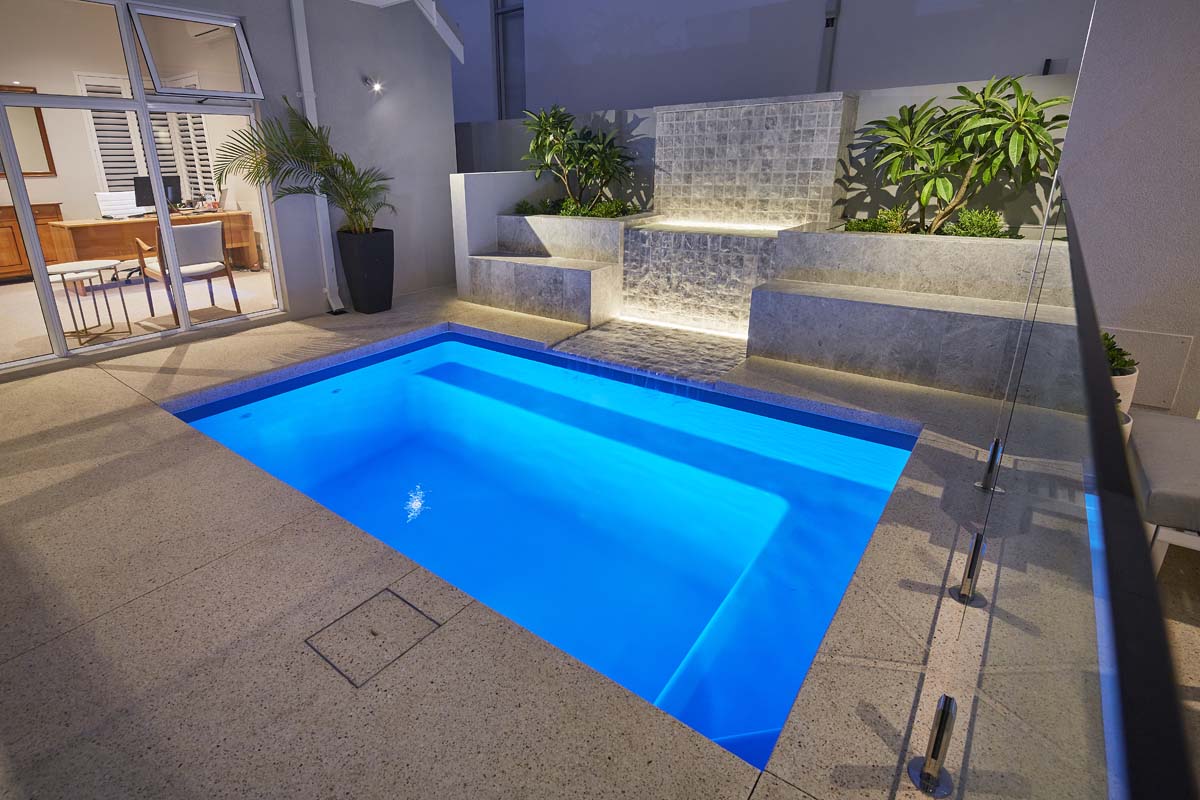

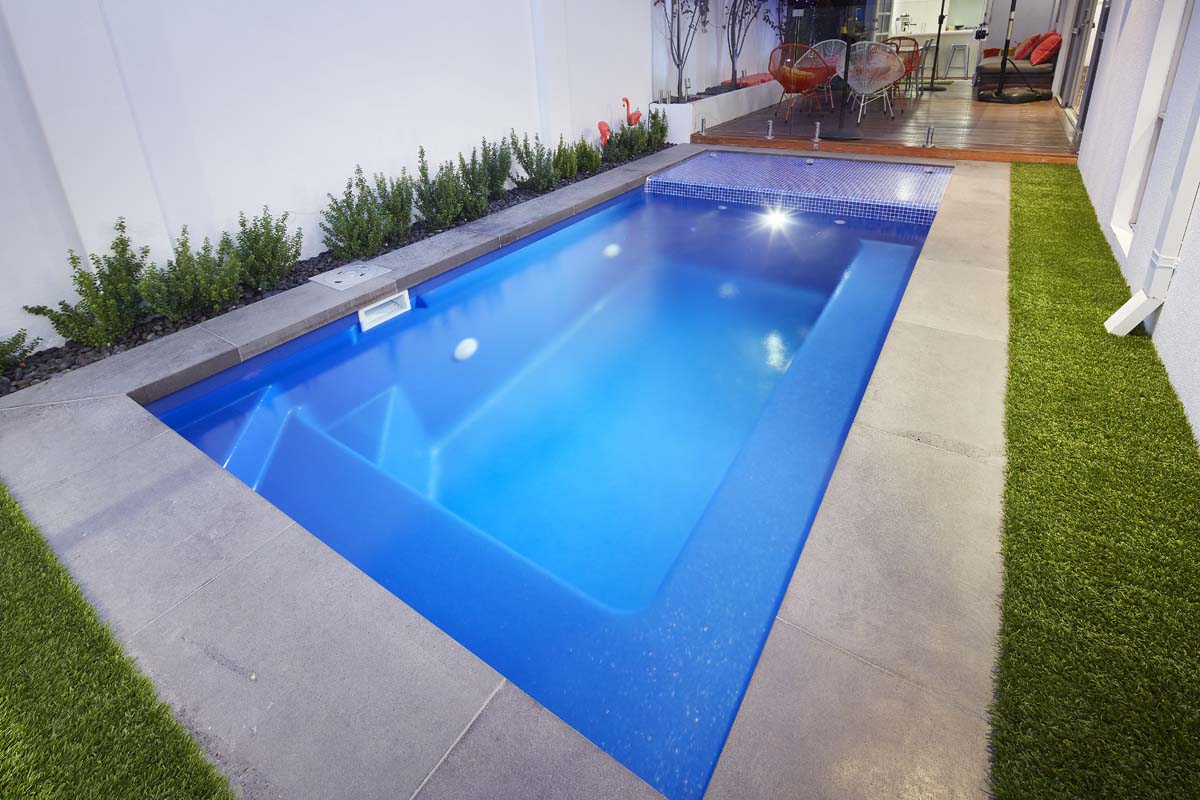

Introducing the Billabong Plunge Slimline, a pool specifically designed for small spaces where conventional pool installations may be challenging. Whether you're seeking a compact plunge pool to cool off and relax or looking to maximize limited space, this pool offers the perfect solution.
With its dual entry steps, the Billabong Plunge Slimline can be conveniently positioned in various areas. The pool features a bench seating area running lengthways and across the entry to accommodate the open spa jet option, which complements the pool perfectly.
Despite its compact size, this pool maintains a constant depth of 1.6 meters, allowing for exciting and enjoyable pool activities for those who love to jump in and have some real fun.
In response to the growing trend of higher density living and smaller private exterior spaces, we have specifically designed the 6.5, 5.5, and 4.7-meter Billabong Plunge Pools to be utilized in such areas. These pools are not only available as in-ground options but can also be installed above ground.
Consider incorporating one of our square spa designs that feature cleverly designed overflow openings. By positioning the spa at one end of your pool, you can create beautiful cascading water effects into the pool. Alternatively, you can install the spa to overflow into an artificial stream or feature, adding a touch of elegance to your pool area.
For added safety, all our pools feature a 100mm wide safety step ledge around the entire perimeter.
Please note that the physical pool shells may vary slightly from the provided drawings, and all dimensions are approximate. We strive to deliver the highest quality while ensuring accuracy in our products.
| LENGTH | WIDTH | DEEP END | SHALLOW END |
|---|---|---|---|
| 4.20 | 2.60 | 1.60 | 1.60 |
| 4.20 | 1.60 | 1.60 | 1.60 |
Pencil compacting is a ‘must do’ around all pools as it is the best way to fully consolidate the excavation area between natural ground and the pool. View our explanation video and you will see that it is just one of the many ways Barrier Reef Pools are superior to others.
Timber boxing is formed up around the pool from waters edge 350mm wide. Two rows of N-12 Bar (Reo Bar) are laid between the perimeter of the timber boxing and the pool shell connecting into the pool shell provisions.
Concrete is then poured around the pool approx. 350mm wide from waters edge x 150mm deep. The concrete is then screeded to approx 15mm – 20mm below the top edge of the fibreglass. This footing provides a solid foundation for your pool headers to be fixed to and therefore will not allow any movement in the paving. (Optional 250mm x 150mm is also available).
As stated to the left concrete is left 15-20mm below the fibreglass edge. This is required so we can use a thick layer of paving bond between the concrete and the paver. This 4 Step process enables us to provide a Lifetime paving guarantee against any bullnose paving becoming loose around the pool’s edge (the paving company must be accredited through Barrier Reef Pools WA Pty Ltd).
Select up to two shell colours to preview and compare.
Image unavailable
This shell colour does not yet have a pool preview image.
Royal Ocean Shimmer
Image unavailable
This shell colour does not yet have a pool preview image.
Image unavailable
This shell colour does not yet have a pool preview image.
